商品の詳細:
|

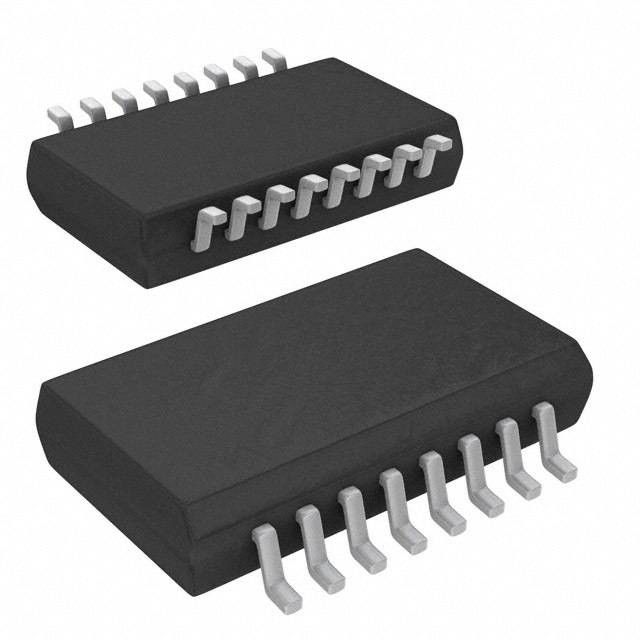

| 部品番号: | ADUM5400ARWZ-RL | 製造業者: | アナログ・デバイセズ株式会社。 |
|---|---|---|---|
| 記述: | DGTL ISO 2.5KV GEN PURP 16SOIC | 部門: | デジタルアイソレータ |
| 家族: | デジタルアイソレータ | シリーズ: | IsoPower®のiCoupler® |
| Part Status | Active |
|---|---|
| Technology | Magnetic Coupling |
| Type | General Purpose |
| Isolated Power | Yes |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 4/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 1Mbps |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Pulse Width Distortion (Max) | 40ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
