商品の詳細:
|
| 部品番号: | FGH40T120SMD_F155 | 製造業者: | Fairchild/ONの半導体 |
|---|---|---|---|

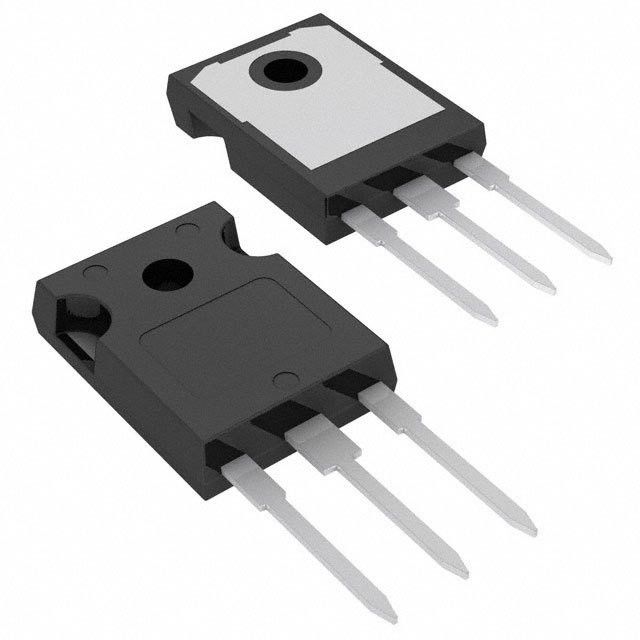

| 記述: | IGBT 1200V 80A 555W TO247-3 | 部門: | 単一トランジスター- IGBTs - |
| 家族: | 単一トランジスター- IGBTs - |
| Part Status | Active |
|---|---|
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Current - Collector (Ic) (Max) | 80A |
| Current - Collector Pulsed (Icm) | 160A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 40A |
| Power - Max | 555W |
| Switching Energy | 2.7mJ (on), 1.1mJ (off) |
| Input Type | Standard |
| Gate Charge | 370nC |
| Td (on/off) @ 25°C | 40ns/475ns |
| Test Condition | 600V, 40A, 10 Ohm, 15V |
| Reverse Recovery Time (trr) | 65ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
