商品の詳細:
|
| 部品番号: | AUIRF7319Q | 製造業者: | インフィニオン・テクノロジーズ |
|---|---|---|---|
| 記述: | MOSFET N/P-CH 30V 8SOIC | 部門: | トランジスター- FETs、MOSFETs -配列 |
| 家族: | トランジスター- FETs、MOSFETs -配列 | シリーズ: | HEXFET® |
| Part Status | Obsolete |
|---|---|
| FET Type | N and P-Channel |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 6.5A, 4.9A |
| Rds On (Max) @ Id, Vgs | 29 mOhm @ 5.8A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 33nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 650pF @ 25V |
| Power - Max | 2W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

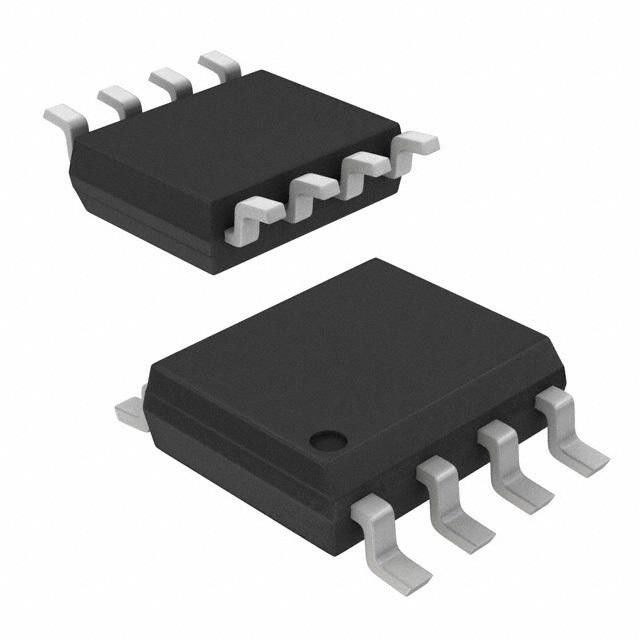

| Package / Case | 8-SOIC |
| Supplier Device Package | 8-SO |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
